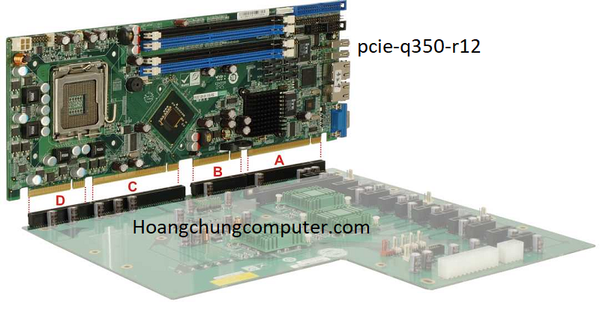

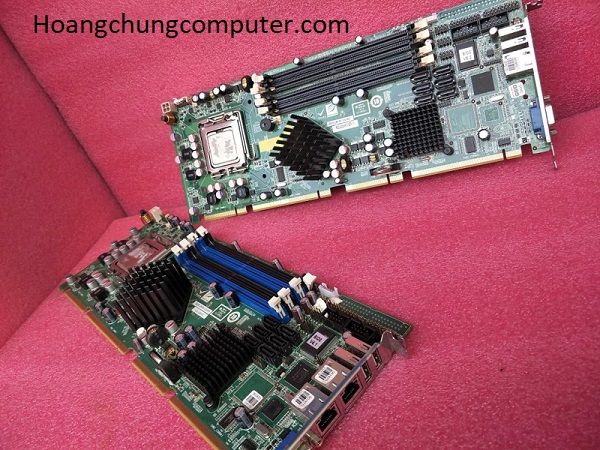

Bo mạch chủ máy công nghiệp PCIE-Q350-R12

Nhà sản xuất: HÃNG INTEL
Giá bán
0₫

* Bo mạch chủ máy công nghiệp PCIE-Q350-R12

* Hãng ROHS PCIE-Q350-R12




CPU
LGA775 45nm Intel Core 2 Quad(Yorkfield), Core™2 Duo(Wolfdale) , Core 2 Duo, Celeron at FSB800/1066/1333MHz processors
System ChipsetIntel Q35 + ICH9-DO
BIOSAMI BIOS Label with 8MB SPI EEPROM
System Memory4 x 240pin DIMM socket dual channel DDRII at 800/667MHz up to 8GB
EthernetDual GbE
LAN1: Intel 82566DM (PHY)
LAN2: Intel 82573L(MAC + PHY)
I/O Interface2 x RS-232
12 x USB2.0 (2 on bracket, 6 on board by pin header, 4 on backplane by pin header)
6 x SATA II support RAID 0, 1, 10, 5
1 x IDE
1 x Keyboard and mouse connector
Super I/OITE 8718F
Digital I/O8-bit Digital I/O, 4-bit input / 4-bit output
Infrared1 x IrDA by pin header
Audio10-pin header on board supports 7.1 channel HD Audio by IEI AC-KIT-883HD
SSDN/A
Display InterfacesAnalog VGA output
SDVO port
ExpansionN/A
Watchdog TimerSoftware Programmable supports 1~255sec. system reset
Power SupplyATX
Power Consumption3.3V@3.0A, 5V@5.1A, 5Vsb@0.28A, 12@4.23A(Intel® Core™ 2 Duo E6700 2.66 GHz at FSB 1066, 8 GB DDR2 667 MHz,3DMark 2001)
Temperatureoperation: 0ºC ~ 60ºC (32ºF ~ 140ºF)
Humidityoperation: 5% ~95% non-condensing
Dimensions338mm x 126mm
WeightGW:1.1kg
GraphicAnalog VGA output
TPM1 x 20-pin on-board header for TPM (Trusted Platrom Module)
